Hopper Window Single & Multipoint Hardware #3
Hopper Window Single & Multipoint Hardware #3
Parrett offers a variety of handlesets that are compatible with our multipoint locking hardware, as well as the ability to accommodate custom handles or handles from a variety of hardware manufacturers.
The hardware listed on this page has been time-tested by Parrett and provides smooth operation and excellent weather sealing potential.
The hopper above at left features a singlepoint lock that can operated by a pole hook. The hopper above at right features a multipoint locking handle (fig.20) and an exposed stay.
Singlepoint & Multipoint Brass Handlesets
Fig. 20 - A traditional design handle for hopper windows that uses European Multipoint latching mechanisms.
For use in TRADITIONAL sash profile hoppers.
Handle: 3-1/2"
Overall Depth: 1-7/8"
Base Dim.: 3/4" x 2-3/8"

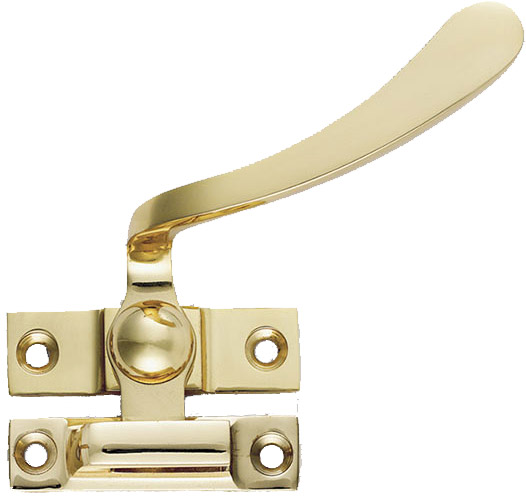

Fig. 21 - Another elegant, traditional design fastener for units not utilizing a multipoint locking gear.
Handle: 3-1/2"
Overall Depth: 1-7/8"
Base Dim.: 11/16" x 2-3/8"
Fig. 22 - Similar function to Fig. 21, with a smaller handle and a unique, aesthetic design.
Handle: 2"
Overall Depth: 1-1/4"
Base Dim.: 11/16" x 2-3/8"

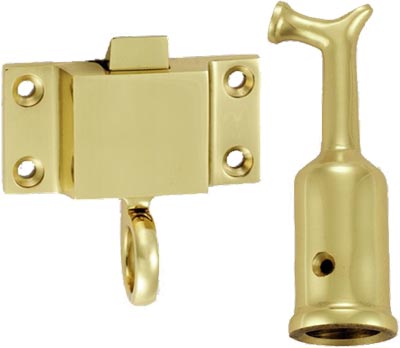

Pole Arm Operator -A pole arm operator is used when hoppers are installed in locations that are difficult to access by hand due to height, this hardware is installed on a long pole and can be used to operate the latch shown.
Hopper Window Hardware Finishes
The finishes below area available for the hardware shown on this page. Parrett also offers custom plating solutions and other hardware finishes, contact us at info@parrettwindows.com for more information.
Polished Lacquered Brass (PB) - The standard finish for most items.
Polished Unlacquered Brass (PBNL) - This finish, though bright when new, will tarnish quickly through use and exposure, to a natural antique finish.
Oil Rubbed Bronze (OB) - A rich, deep, brown finish, produced by oxidation of the brass metal, and protected by a matte lacquer. Over time the areas of the hardware exposed to wear will become lighter and more polished by use, resulting in the appearance of antique bronze.
Satin Nickel (SN) - This finish is produced by lightly polishing a dull nickel plating with a fine abrasive brush. The result is a clean, functional look, not unlike pewter or brushed stainless steel.
Polished Nickel (PN) - This is a smooth, rich, and highly polished finish, often found on high quality bathroom fixtures. Polished nickel has a warmer appearance when compared to chrome plating.
