Parrett offers a variety of handlesets that are compatible with our multipoint locking hardware, as well as the ability to accommodate custom handles or handles from a variety of hardware manufacturers.
The hardware listed on this page has been time-tested by Parrett and provides smooth operation and excellent weather sealing potential.
This casement features two singlepoint latches in oil-rubbed bronze as seen in “Fig. 21”. Two historic pushbars are also included, for more information on this pushbar style please visit this page.
Singlepoint & Multipoint Brass Handlesets
Fig. 20 - A traditional design handle for pushout casement windows that uses European Multipoint latching mechanisms.
Handle: 3-1/2"
Overall Depth: 1-7/8"
Base Dim.: 3/4" x 2-3/8"
Fig. 21 - Another elegant, traditional design fastener for units not utilizing a multipoint locking gear.
Handle: 3-1/2"
Overall Depth: 1-7/8"
Base Dim.: 11/16" x 2-3/8"
Fig. 22 - Similar function to Fig. 21, with a smaller handle and a unique, aesthetic design.
Handle: 2"
Overall Depth: 1-1/4"
Base Dim.: 11/16" x 2-3/8"

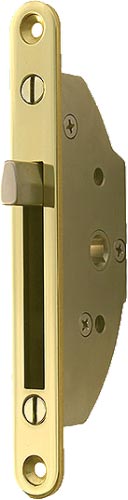

Fig. 24 - is a casement lock designed to be compatible with “Fig. 23” casement handle as well as any other handle using standard European mounting dimensions. The action is precise and positive in both locked and unlocked positions. It can be used in outswing and inswing applications, and the slim design makes it ideal for narrow window and door stiles.
Handle: 2"
Overall Depth: 1-1/4"
Base Dim.: 11/16" x 2-3/8"
Pushout Hardware Finishes
The finishes below area available for the hardware shown on this page. Parrett also offers custom plating solutions and other hardware finishes, contact us at info@parrettwindows.com for more information.
Polished Lacquered Brass (PB) - The standard finish for most items.
Polished Unlacquered Brass (PBNL) - This finish, though bright when new, will tarnish quickly through use and exposure, to a natural antique finish.
Oil Rubbed Bronze (OB) - A rich, deep, brown finish, produced by oxidation of the brass metal, and protected by a matte lacquer. Over time the areas of the hardware exposed to wear will become lighter and more polished by use, resulting in the appearance of antique bronze.
Satin Nickel (SN) - This finish is produced by lightly polishing a dull nickel plating with a fine abrasive brush. The result is a clean, functional look, not unlike pewter or brushed stainless steel.
Polished Nickel (PN) - This is a smooth, rich, and highly polished finish, often found on high quality bathroom fixtures. Polished nickel has a warmer appearance when compared to chrome plating.
